WL-UVL Series Hydraulic Wheelchair Lift for Wheelchair User

FOB Reference Price:Get Latest Price
$3,000.00 - $5,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Design:
Scissor
Type:
One Cylinder Hydraulic Lift
Certification:
CE
Lifting Capacity:
350kg
Lifting Height(mm):
700-1600mm
Overall Width(mm):
751*1220/751*1297mm
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
xinder
Model Number:
WL-UVL-700-S
loading capacity:
350kg
Motor power:
0.8Kw
Max lifting height:
700 -1600mm
Voltage:
12/24 V
Len & width of platform:
751*1220/751*1297mm
Cylinder diameter&stroke:
60X70 unidirectional operation
Pressure:
2500Psi
operation:
electric and manual
Platform material:
No-skid aluminum honeycomb
model:
WL-UVL-700
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
packing size is 2040*1220*200mm and 350*250*550mm
Port
SHANGHAI
Lead Time :
Within 30 days

1. INFORMATION

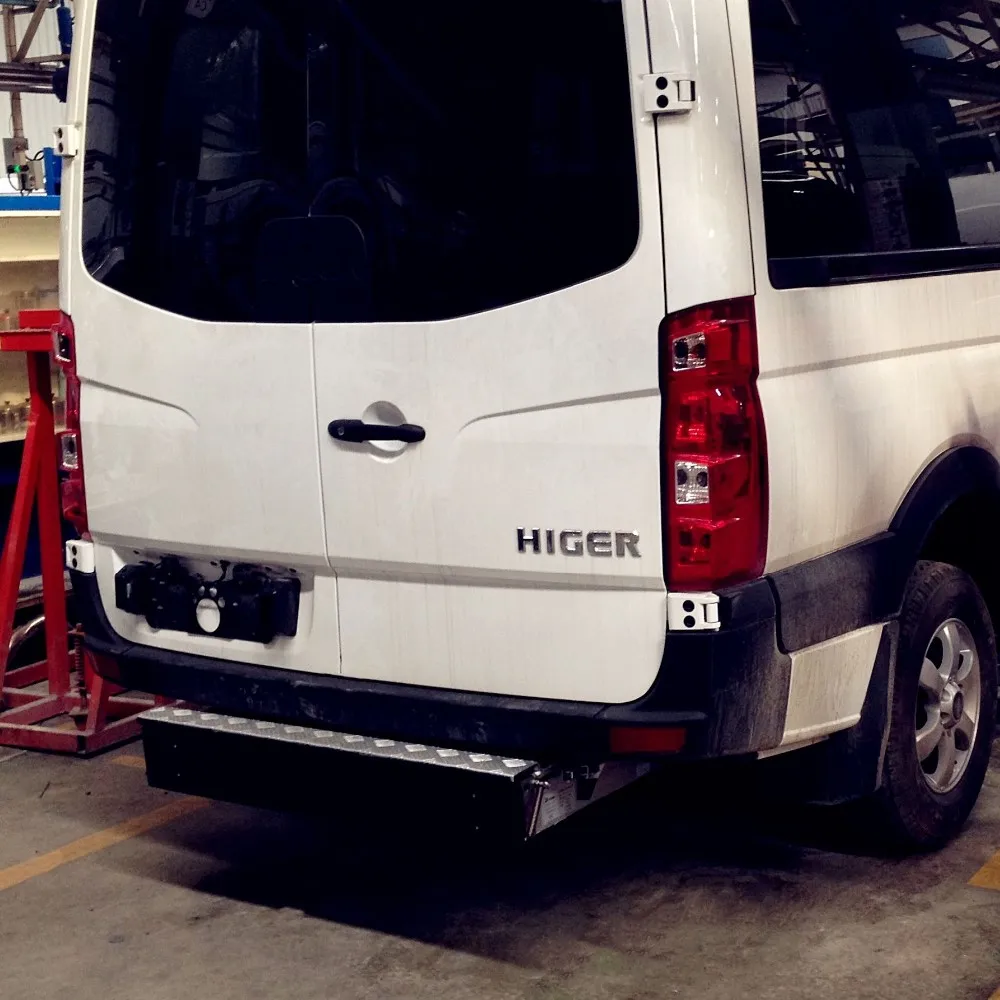

WL.UVL Series wheelchair lift is installed under vehicle floor. It is operated easily, safe and reliable,

with load capacity 350KG. The wheelchair occupant, attendant or driver can operate it by operating

switches.



It uses hydraulic power unit, stable when hydraulic lift up, save up electricity when gravity decline. With optional standard kit manual emergency devices, if the lift without power, it will be operated manually by more than 2 staffs.



It is important to user safety that lift operator.be completely familiar with the operating instructions. Once the lift is installed, it is very important that the lift be properly maintained by following the Xinder recommended cleaning, lubrication, and inspection instructions. If there are questions about this series lift, or additional copies are needed, please contact Xinde-Tech.









2. ADVANTAGES



Ø Electric outboard rollstop and automatic inboard rollstop



Ø Super thin compact design



Ø No-skid aluminum honeycomb platform



Ø Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs



Ø Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.



Ø Side handrails (Option), for increased comfort and security



Ø Sound and flash light alarm during operation of platform



Ø Built in manual backup system

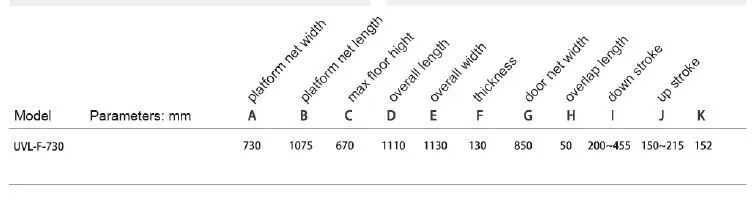

3.TECHNICAL SPECIFICATION



Model

Voltage

Motor power

Pressure

Cylinder diameter&stroke

UVL-700/1000

/1300

12V/24V

0.8Kw

2500Psi

Φ60X70

unidirectional operation



Max lifting load

Max lifting height

Voltage

Len & width of platform

350 Kg

700 -1600mm

12/24 V

751*1220/751*1297mm



¨ Raise lift platform: motor drive, hydraulic function;

¨ Lower lift platform: pressure release valve of power unit control velocity of flow to provide gravity function;

¨ Raise platform manually: operate manual pump;

¨ Lower platform manually: rotate button of manual pressure release valve with specialized tool;

¨ Movement of front & rear rollstop: electric drive(front rollstop), mechanical drive (rear rollstop);

¨ Model & Capacity of hydraulic oil: L-HV46
