MINI-UVL CE hydraulic platform lift for wheelchair and the disabled

FOB Reference Price:Get Latest Price
$3,000.00 - $4,000.00 / Sets | 1 Set/Sets (Min. Order)
Lifting Height(mm):
450-750mm
Overall Width(mm):
937mm
Report Suspicious Activity
Overview
Quick Details
Design:
Scissor
Type:
One Cylinder Hydraulic Lift
Certification:
CE
Lifting Capacity:
300kg
Place of Origin:
Jiangsu, China
Brand Name:
xinder
Model Number:
MINI-UVL
Warranty:
12 Months
loading capacity:
300kg
Motor power:
0.8Kw
Max lifting height:
450-750mm
Voltage:
12/24 V
Len & width of platform:
750*1200mm
Cylinder diameter&stroke:
60X70 unidirectional operation
Pressure:
2500Psi
operation:
electric and manual
Platform material:
No-skid aluminum honeycomb
model:
MINI-UVL
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
packing size is 2040*1220*200mm and 350*250*550mm
Port
SHANGHAI
MINI-UVL

MINI-UVL wheelchair lift

For commercial vehicles side door!

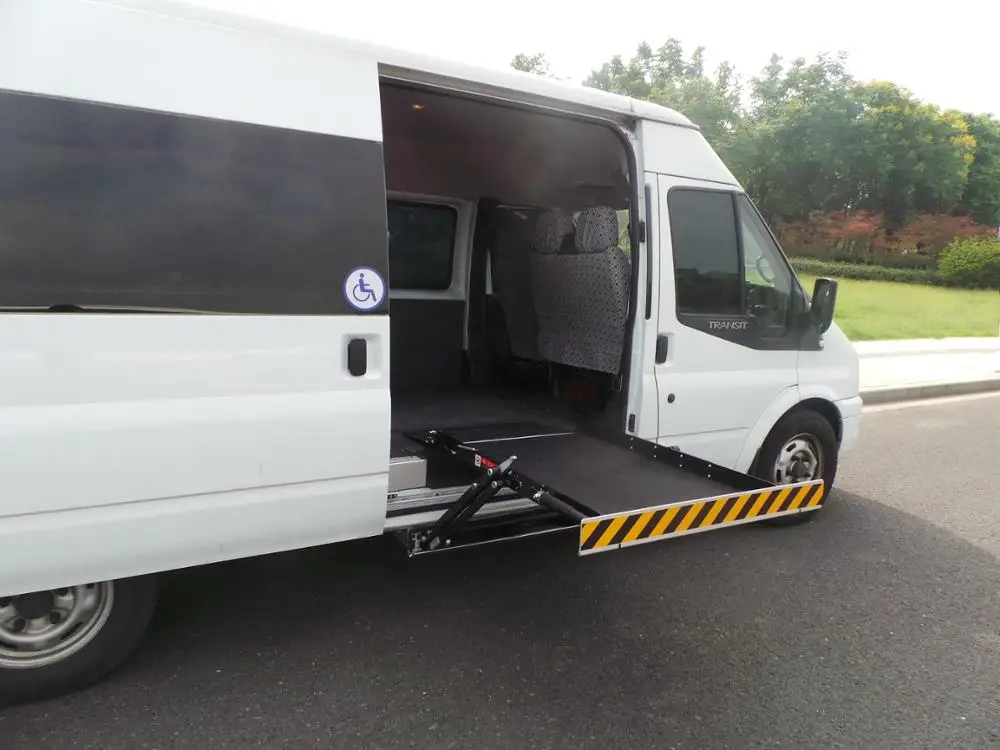

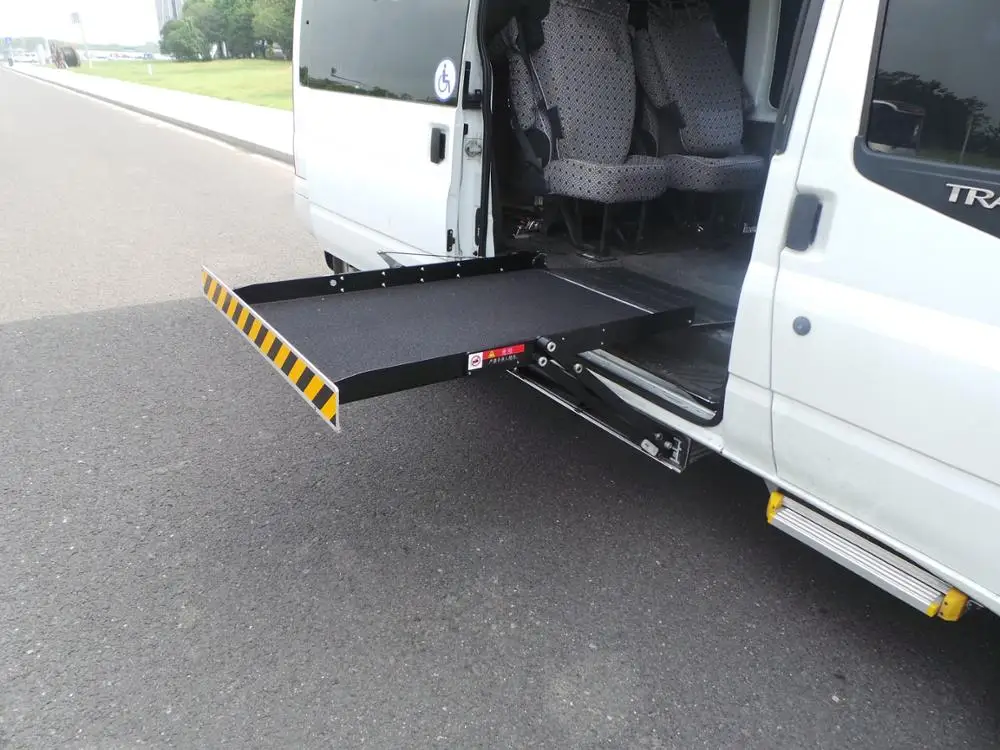

This MINI-UVL  lift is installed under chassis of commercial  vehicle side door. it stays out of sight and out of the way when not in use.

Thickness is only 90mm.

Fully automatic and controlled by a wired remote control.

Advantages:

* super thickness,only 90mm

* warning sound while working

* manual backup function

* anti-skip platform

* mechanical automatic roll stops

* hydraulic power system ensure stable movement.

* door interlock function

* inside safety locking device

Technical:
Model
MINI-UVL
Power
800W
Loading capacity
300kg
operation method
Electric and hydraulic
voltage
12V/24V

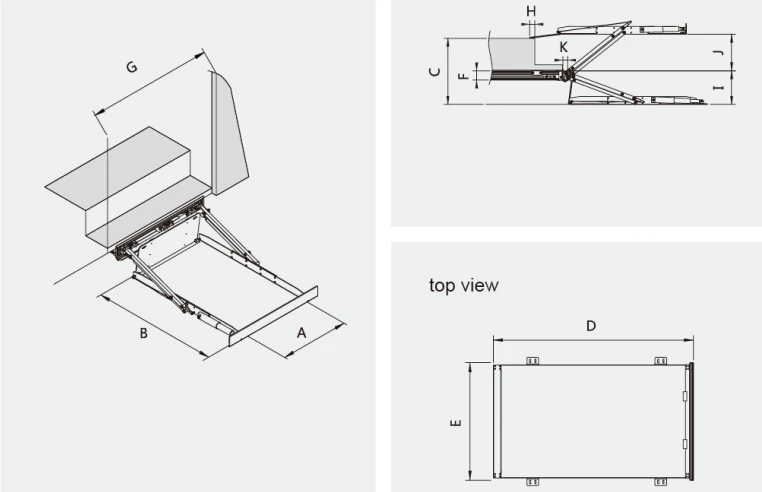

Model
MINI-UVL
Platform net width A
720
Platform net length B
1140
Overall height C
1215
max lifting height D
880
overall width E
1137
Door net width F
1150
Door net height G
1230
Depth H
435
XINDER Products
MINI-UVL

Wheelchair lift for side door of van

WL-D-880

Wheelchair lift for rear door of van

BMWR-3

manual wheelchair ramp for van

S-LIFT Pro

Swivel lifting seat for cars

ES-S-600

Electric sliding step

X-801-1

Wheelchair tie down system

XINDER Certification
Packing & Shipping

Packaging Details:

1) Internal packaging:be packed air bubble film inside first
2) External packaging:be packed in wooden cases or carton box
Delivery and shipping Details:
1)Usually be shipped by maritime transport or air transport
2)if it is landlocked countries, generally land and sea transport.
3)15-30 days after confirmation of the purchase order

Usually we use wooden case pack for wheelchair lift,wheelchair ramp and swivel seat

                           Carbox for Electric step,wheelchair restraint system


Why choose Xinder

Xinder-Tech Electronics Co., Ltd was established in 2001.
Xinder-Tech specializes in designing, manufacturing and selling vehicle mobility products, including wheelchair ramps, wheelchair lifts, electric steps, wheelchair tie down systems, swivel seat, hand driving system, car roof box and other mobility products.
Xinder-Tech is a leader company in specialist vehicle conversions and equipment for disabled people in China, and our products have taken up 95% of Chinese market. Meanwhile, our products have been exported to over 50 countries.
Our service includes R&D of products, manufacture, system debugging, on-site field visit to customer.
Our goal is to provide the best solutions for customer's requirements.
Xinder-Tech is an IATF16949:2016 compliant company.

Team

we are family

Research&development

research, developemnt

Factory

Production

Test

product test

Training

we get training from our partners and also train our agents

Exhibitions.

we promote our products via exhibitions.

XINDER service

 if you are interested in our products, we will provide satisfactory service for you!

1)- One year warranty for whole machines.
2)- Providing free quick-wear part.
3)- Low charge for continue maintenance when warranty is expired.
4)- Exclusive engineer support at any time.
5)- We can provide free training to end-users
6)- 24hours online services
