Wheelchair Restraint System to make sure the wheelchair safety

FOB Reference Price:Get Latest Price
$150.00 - $250.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 50 >50
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Properties:
Rehabilitation Therapy Supplies
Place of Origin:
Jiangsu, China (Mainland), Jiangsu, China (Mainland)
Brand Name:
XINDER, xinder
Model Number:
X-801-1, X-801-1
Type:
Other
drive mode:
Manual
Material:
steel
Folding:
Yes
Compatible Weight:
8 kg
packing size:
32*27*15 cm
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton case
Port
shanghai
Lead Time :
Quantity(Sets) 1 - 50 >50
Est. Time(days) 7 To be negotiated
X-800

Wheelchair restraint system is the wheelchair & occupant secure system which fixed on vehicle.
Each componment is designed, engineered and tested to work as one cohesive sysetm.
In the event of a collision or sudden stop, this system isolates the forwarder forces of the occupant form those of their chair by directing the chair's forces to the vehicle floor.
These systems are the easy and fast securing 4-point system, reducing vehicle wait times for transportation.
It has passed test of ISO 10542-1:2012

we have serveral types for choice.

Advantages.

* mechanical automatic tightening belts;

*standard equiped with lap belt;

*optional shoulder belt available;

*rubber seal tracks when not in use;


X-801-1(with surface tracks)

Parts list:
*4 restractors with track floor anchorage;
*4 surface tracks;
*8 plastic end caps;
*1 lap belt;
*4 rubber sealing strips;
*1 shoulder belt(option);
*1 shoulder belt mounting bracket(option);

X-801-2(with cupped tracks)

Parts list:
*4 restractors with track floor anchorage;
*4 cupped tracks;
*8 plastic end caps;
*1 lap belt;
*4 rubber sealing strips;
*1 shoulder belt(option);
*1 shoulder belt mounting bracket(option);

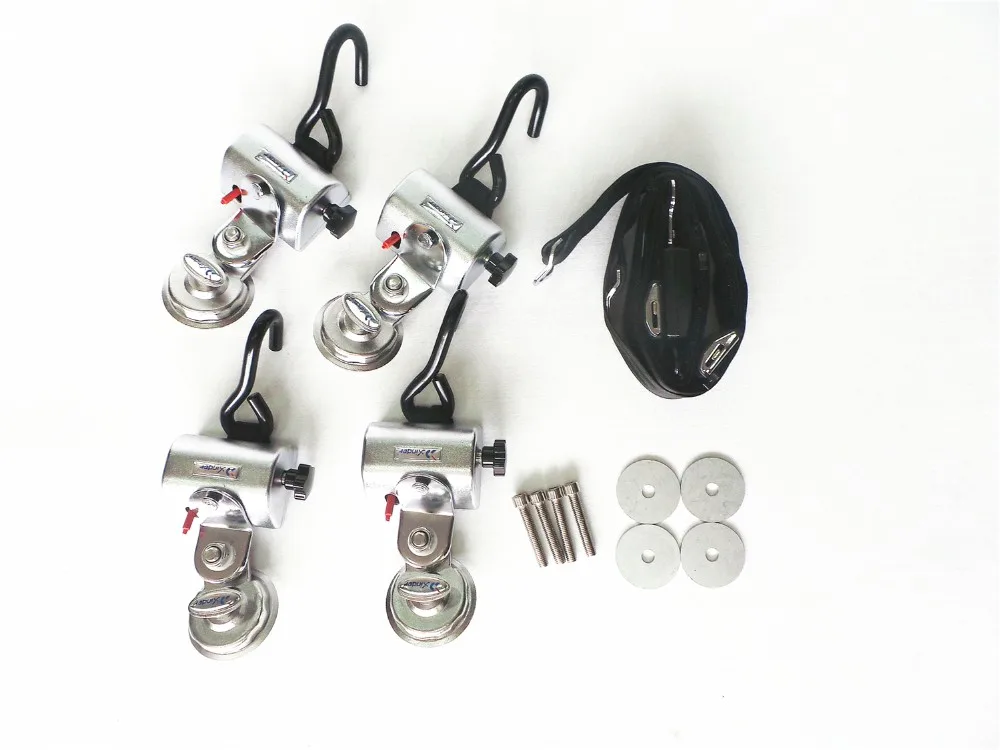

X-802-1(with round disks)

Parts list:
*4 restractors with slide&click floor anchorage;
*4 round desks;
*4 mounting plates;
*4 mounting screws;
*1 lap belt;
*1 shoulder belt(option);
*1 shoulder belt mounting bracket(option);

X-803-1(wheelchair docking system)

Wheelchair docking system can ensure safety of wheelchair by a simple way during vehicle running, easy operation. When the wheelchair drive into docking system and the lock pin on wheelchair insert into lock fixed on floor, it will be locked automatically. If you want to leave docking system, you just need to push release switch to release lock.
The advantage of wheelchair docking system is that it needn't safety belt and constrain wheelchair by retractor or safety belt

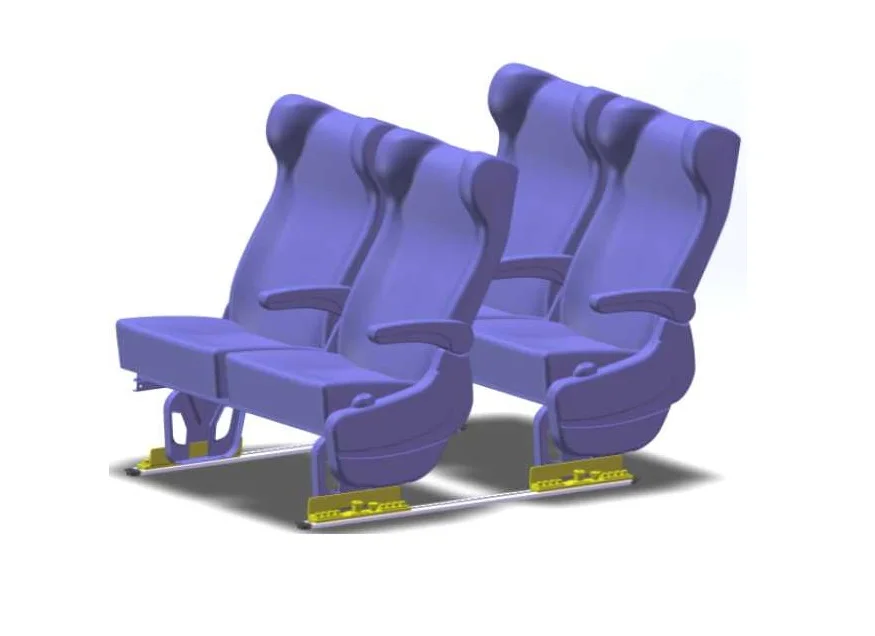

X-804(seat fixing system)

By using this seat fixing system, vehicle seat can be quickly installed on the floor tracks or removed just bu hand without any tools which is convenient.

The advantage of this system is that if there is a wheelchair passenger, it's convenient to fix wheelchair by wheelchair tie down system on the floor tracks.

If there is no wheelchair passenger, it's also convenient to remount bus seat on the same floor tracks. It can save waiting time for the trainsportation.

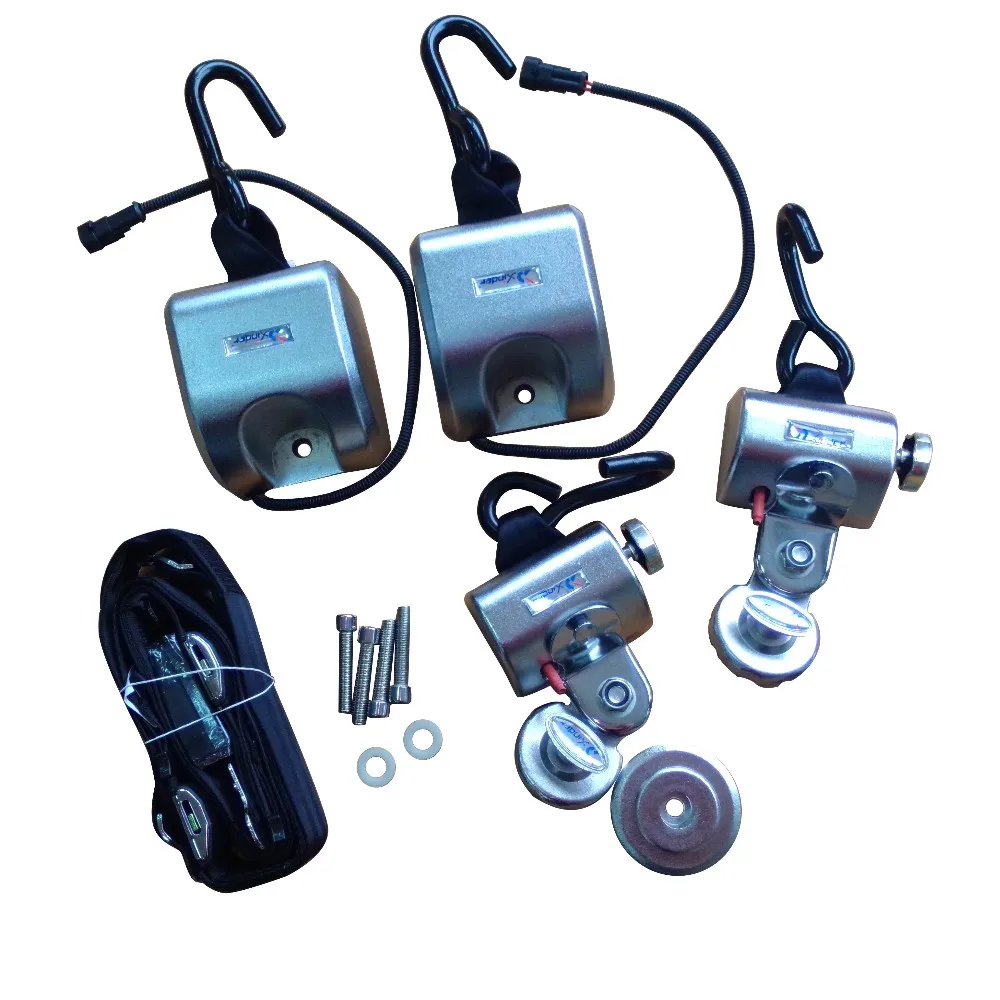

X-806(electromagnetic)

Parts list:
*2 electomagnetic restractors;
*2 restractors with slide&click floor anchorage;

*2 round desks;
*2 mounting plates;
*4 mounting screws;
*1 lap belt;
*1 shoulder belt(option);
*1 shoulder belt mounting bracket(option);

Packing & Shipping

Packaging Details:

1) Internal packaging:be packed air bubble film inside first
2) External packaging:be packed in wooden cases or carton box
Delivery and shipping Details:
1)Usually be shipped by maritime transport or air transport
2)if it is landlocked countries, generally land and sea transport.
3)15-30 days after confirmation of the purchase order

Usually we use wooden case pack for wheelchair lift,wheelchair ramp and swivel seat

                           Carbox for Electric step,wheelchair restraint system


Why choose Xinder

Xinder-Tech Electronics Co., Ltd was established in 2001.
Xinder-Tech specializes in designing, manufacturing and selling vehicle mobility products, including wheelchair ramps, wheelchair lifts, electric steps, wheelchair tie down systems, swivel seat, hand driving system, car roof box and other mobility products.
Xinder-Tech is a leader company in specialist vehicle conversions and equipment for disabled people in China, and our products have taken up 95% of Chinese market. Meanwhile, our products have been exported to over 50 countries.
Our service includes R&D of products, manufacture, system debugging, on-site field visit to customer.
Our goal is to provide the best solutions for customer's requirements.
Xinder-Tech is an IATF16949:2016 compliant company.

Team

we are family

Research&development

research, developemnt

Factory

Production

Test

product test

Training

we get training from our partners and also train our agents

Exhibitions.

we promote our products via exhibitions.

Certifications
Exhibition
