WL-UVL-700 van Hydraulic Wheelchair Lift for Disabled Passengers with CE Certificate

FOB Reference Price:Get Latest Price
$3,000.00 - $5,000.00 / Sets | 1 Set/Sets (Min. Order)
Lifting Height(mm):
700-1000mm
Overall Width(mm):
1220mm
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Design:
Scissor
Type:
One Cylinder Hydraulic Lift
Certification:
CE
Lifting Capacity:
300kg
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
xinder
Model Number:
WL-UVL-700
Warranty:
12 Months
loading capacity:
300kg
Motor power:
0.8Kw
Max lifting height:
700 -1600mm
Voltage:
12/24 V
Len & width of platform:
751*1220/751*1297mm
Cylinder diameter&stroke:
60X70 unidirectional operation
Pressure:
2500Psi
Platform material:
No-skid aluminum honeycomb
operation:
electric and manual
model:
WL-UVL-700
Supply Ability
Supply Ability:
150 Set/Sets per Month
Packaging & Delivery
Packaging Details
packing size for wheelchair lift is 2060*1165*365mm and hydraulic station is 450*295*610mm
Port
SHANGHAI
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 7 To be negotiated
Video Description
Product Description
Product name
wheelchair lift for bus
Platform size
1220*750mm
Model
WL-UVL-700-S
Dimension
1792*1135*166mm
Voltage
24V or 12Vdc
Up stroke
430mm
Power
800w
Down stroke
550mm
Pressure
2500Psi
Certificate
CE
Loading capacity
300kg
own weight
170kg
Max lifting height
980mm
MOQ
1
Max floor height
980mm
Port
Ningbo/Shanghai...

Advantages:

Electric outboard rollstop and automatic inboard rollstop
Super thin compact design
No-skid aluminum honeycomb platform
Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
Side handrails (Option), for increased comfort and security
Sound and flash light alarm during operation of platform
Built in manual backup system

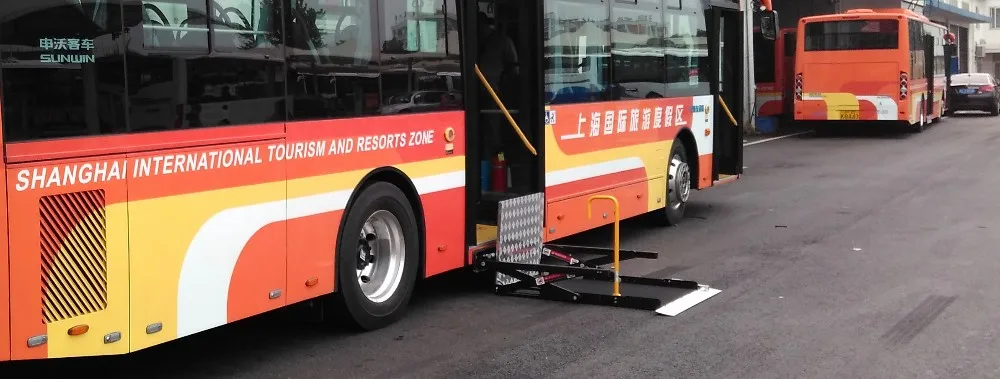

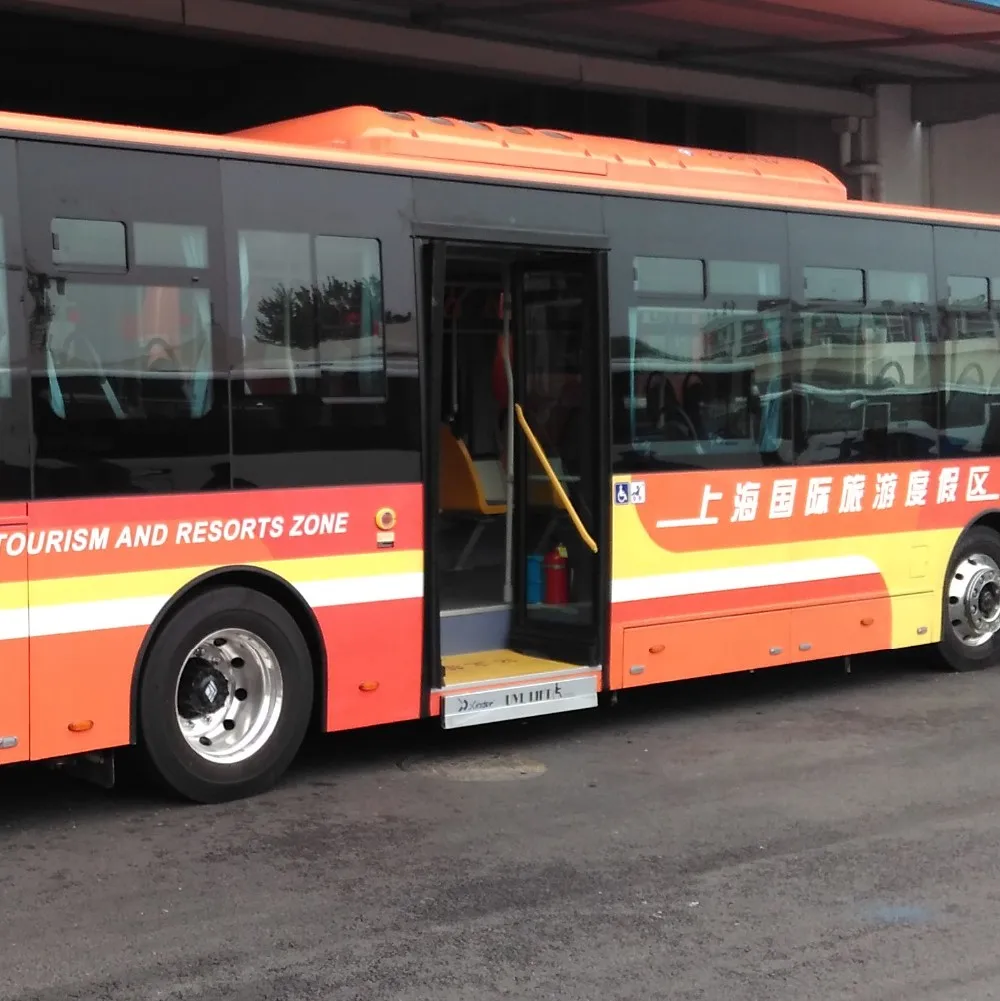

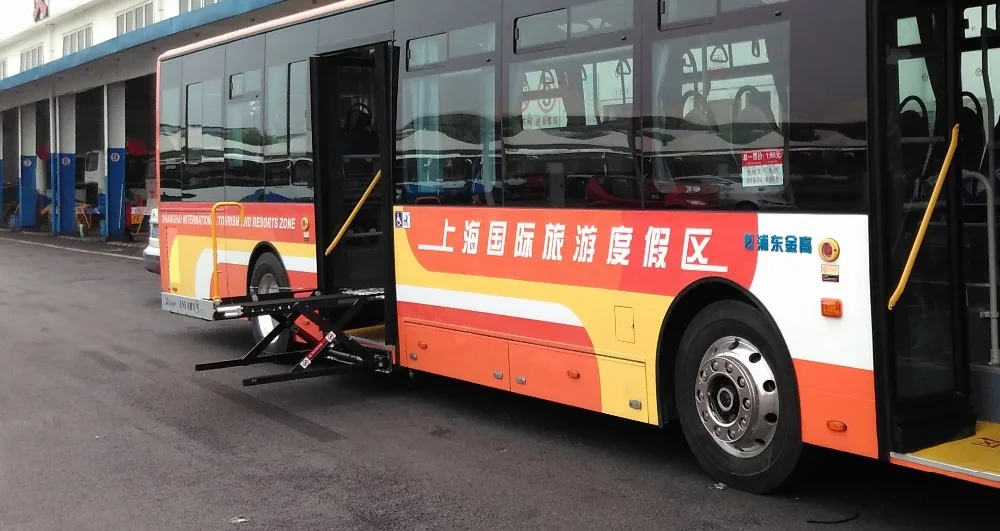

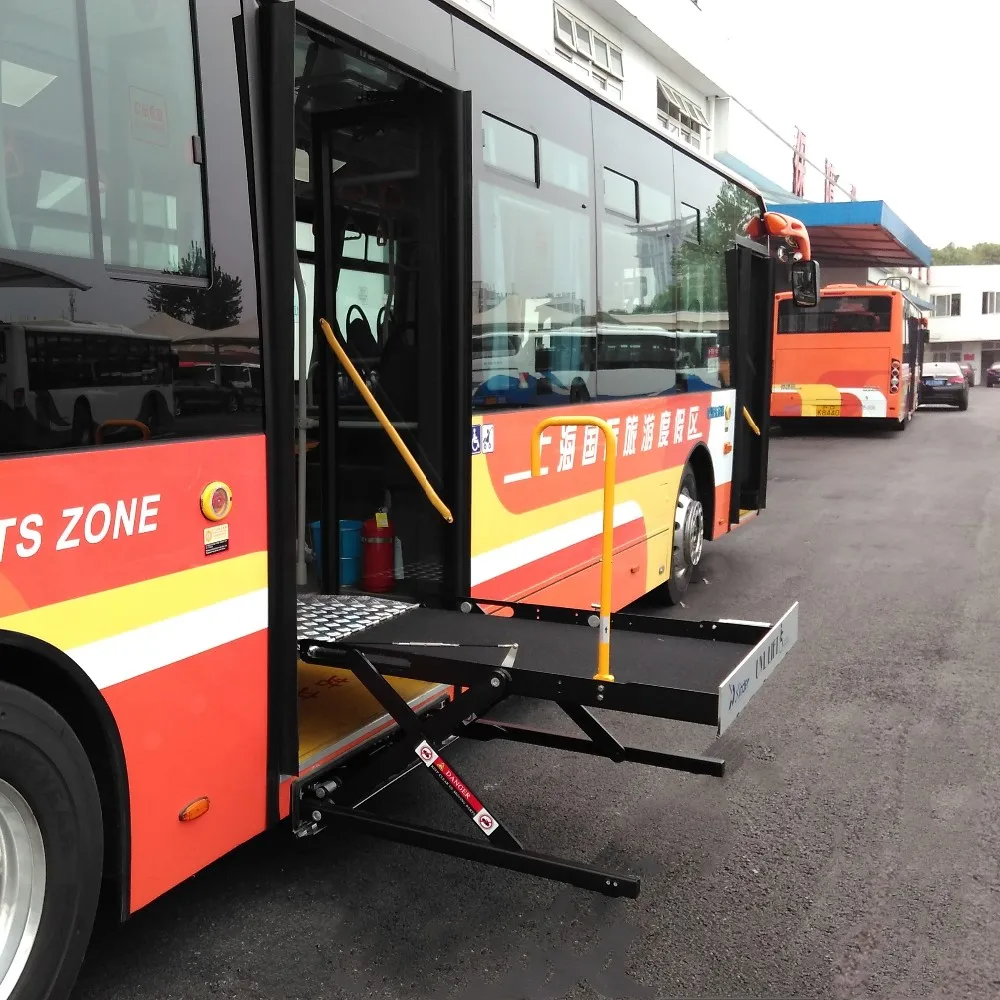

Detailed Images
Other Products
Our Company

Xinder-Tech Electronics Co., Ltd was established in 2001.
Xinder-Tech specializes in designing, manufacturing and selling vehicle mobility products, including wheelchair ramps, wheelchair lifts, electric steps, wheelchair tie down systems, swivel seat, hand driving system, car roof box and other mobility products.

Xinder-Tech is a leader company in specialist vehicle conversions and equipment for disabled people in China, and our products have taken up 95% of Chinese market. Meanwhile, our products have been exported to over 50 countries.

There are over 5000 sets of the wheelchair ramps, wheelchair lifts used for the Beijing Olympics in 2008 and the Guangzhou Asia Game in 2010.

Our service includes R&D of products, manufacture, system debugging, on-site field visit to customer.
Our goal is to provide the best solutions for customer's requirements.

Xinder-Tech is an IATF16949:2016 compliant company.

Packing & Delivery
Plywood case
cantainer
Plywood case
Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU...

Q4. How about your delivery time?
A: Generally, it will take 5 to 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
