Xinder WL-D wheelchair accessible of vertical platform lift for private vehicles with CE certificate

FOB Reference Price:Get Latest Price
$1,000.00 - $3,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
WL-D-880U-1150
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Xinder
Lift Mechanism:
double arm
Lift Drive / Actuation:
Hydraulic
Power:
12V/24V
Rated Loading Capacity:
350kg
Min. Lifting Height:
0
Max. Lifting Height:
880MM
Table Size:
720*1150MM
Overall Dimensions:
500*1135*1130MM
Weight:
140KG
Certification:
CE , ISO9001
Warranty:
12 months
Platform Dimention:
1150*720 mm / 1250*820 mm
Loading Capacity:
350 kg
Own weight:
about 134kg
Electric systerm:
12V / 24V
Max working pressure:
14 Mpa
Operation:
Electric (Hand Pump Backup)
Packing:
wooden box
Platform:
Folds when stoewd
Application:
Van, Minivan, Minibus, Car
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
1 wooden case
Port
Shanghai /ningbo/ tianjin
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 7 To be negotiated
Product Description

WL-D-880U(with fold platform).

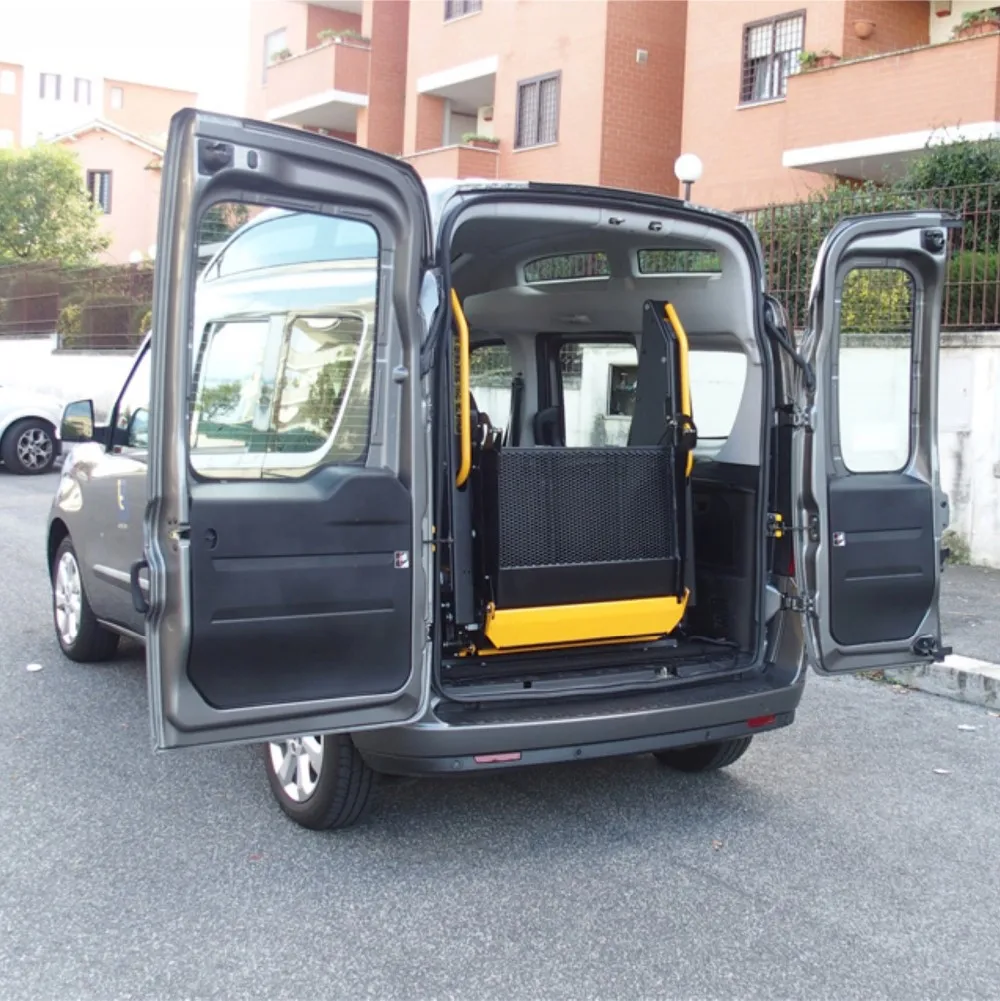

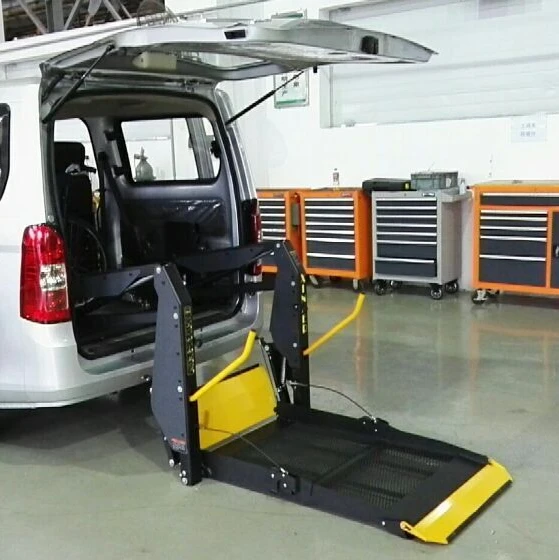

This wheelchair lift is the lift with a unique "fold-in-half" platform. When the lift is stowed, it provides an unobstructed view for the driver, helping to eliminate hazardous blind spots, allows a clear view for the passengers, and is virtually unseen from outside. Plus, because the platform folds when stowed, no raised-roof modification for your personal vehicle is required – even when a long platform is necessary for larger wheelchairs and power scooters. The lift is quiet and easy-to-maintain.

Advantage:
*Unobstructed view from within the vehicle;
*Added safety benefit of minimized blind spots;

*Unique folding platform accommodates longer platform scooters and wheelchairs without requiring raised roof or door;

*Stable and compact when stowed;
*manual backup function;
*anti-skip platform;
*hydraulic power system ensure stable movement;
*mechanical automatic roll stops;
Technicals:
*voltage-------12/24V;
*power---------800W;
*loading capacity------300kg;

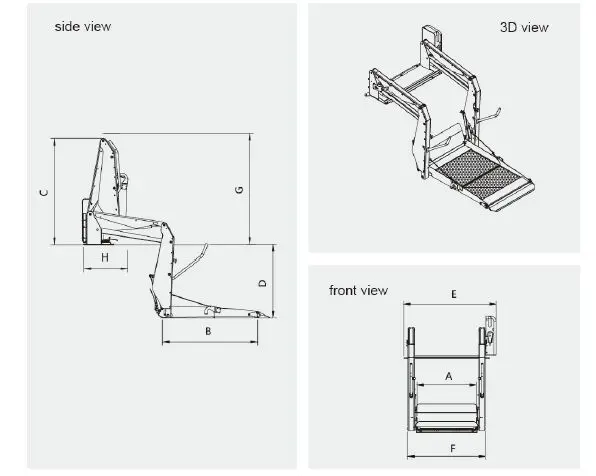

Model
A (mm)
platform net width
platform net length
overall height
max lifting height
overall wideth
door net width
door net height
depth
WL-D-880U-1150
720
1140
1200
880
1137
1150
1230
490
WL-D-880U-1250
820
1240
1200
880
1137
1250
1330
490
Packing & Shipping

Packaging Details:

1) Internal packaging:be packed air bubble film inside first
2) External packaging:be packed in wooden cases or carton box
Delivery and shipping Details:
1)Usually be shipped by maritime transport or air transport
2)if it is landlocked countries, generally land and sea transport.
3)15-30 days after confirmation of the purchase order

Usually we use wooden case pack for wheelchair lift,wheelchair ramp and swivel seat

                           Carbox for Electric step,wheelchair restraint system


Why choose Xinder

Xinder-Tech Electronics Co., Ltd was established in 2001.
Xinder-Tech specializes in designing, manufacturing and selling vehicle mobility products, including wheelchair ramps, wheelchair lifts, electric steps, wheelchair tie down systems, swivel seat, hand driving system, car roof box and other mobility products.
Xinder-Tech is a leader company in specialist vehicle conversions and equipment for disabled people in China, and our products have taken up 95% of Chinese market. Meanwhile, our products have been exported to over 50 countries.
Our service includes R&D of products, manufacture, system debugging, on-site field visit to customer.
Our goal is to provide the best solutions for customer's requirements.
Xinder-Tech is an IATF16949:2016 compliant company.

Team

we are family

Research&development

research, developemnt

Factory

Production

Test

product test

Training

we get training from our partners and also train our agents

Exhibitions.

we promote our products via exhibitions.

Certifications
Exhibition
