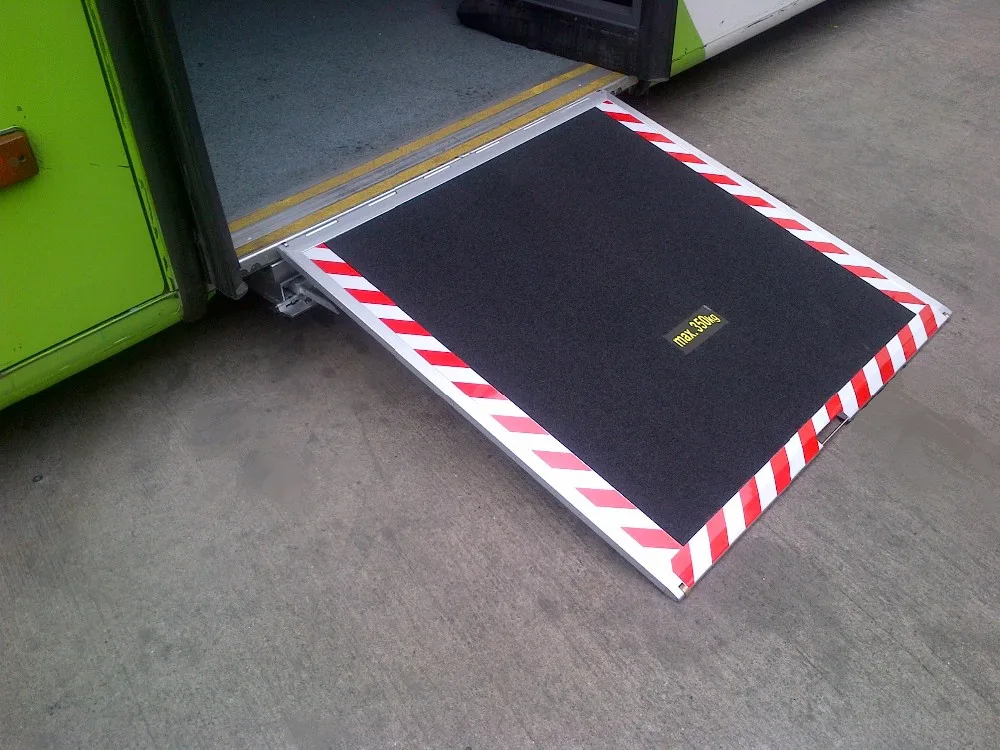

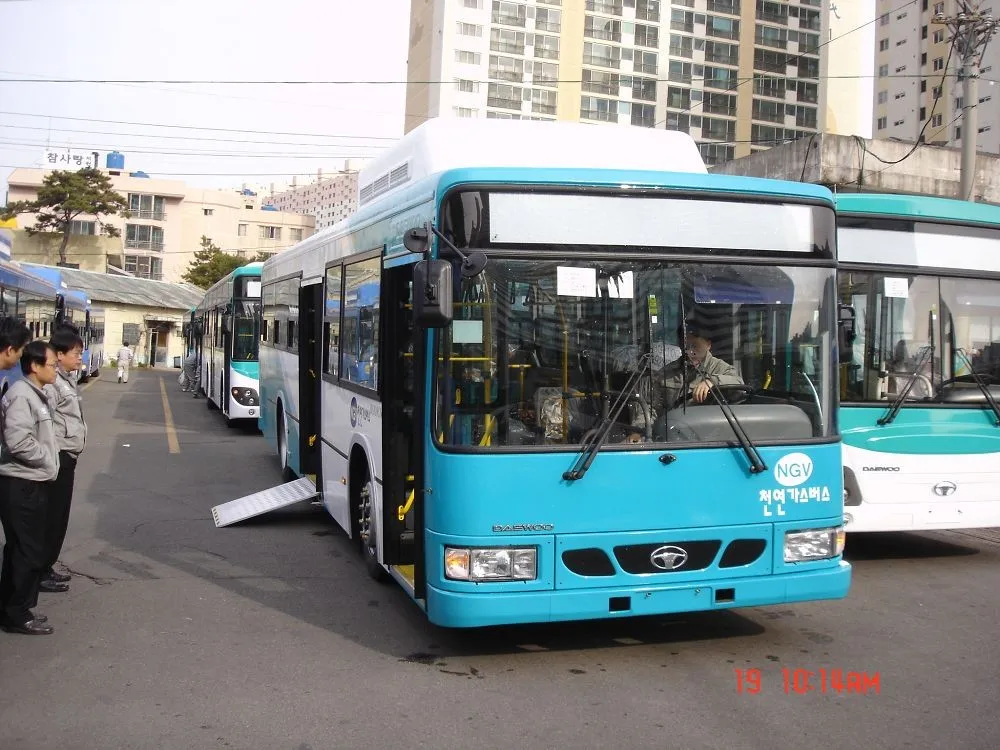

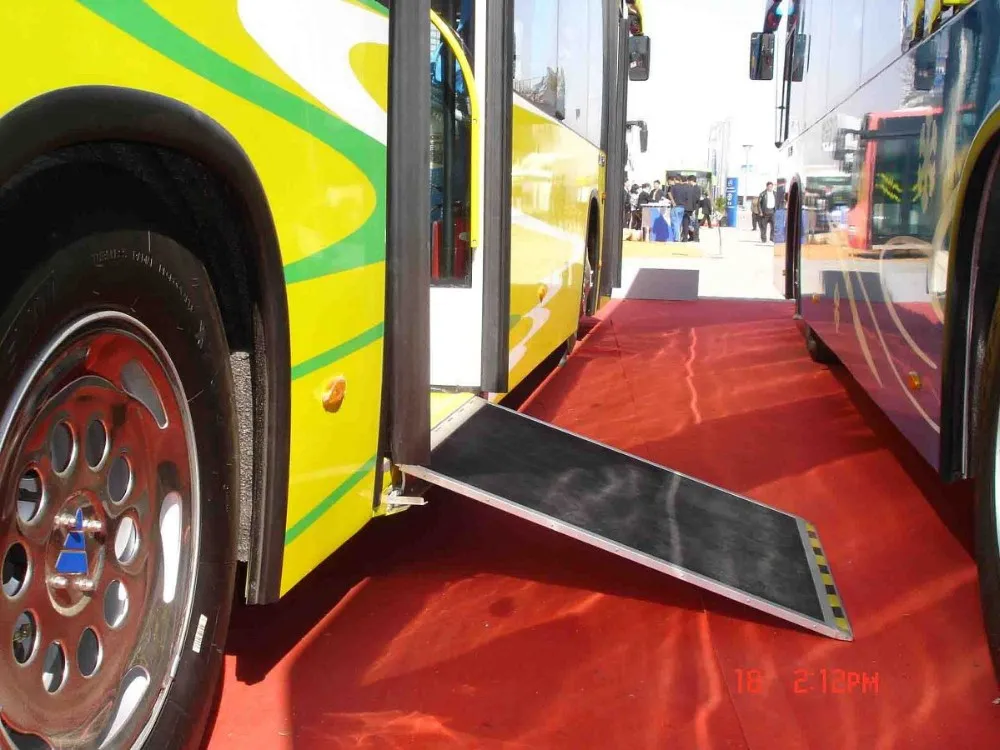

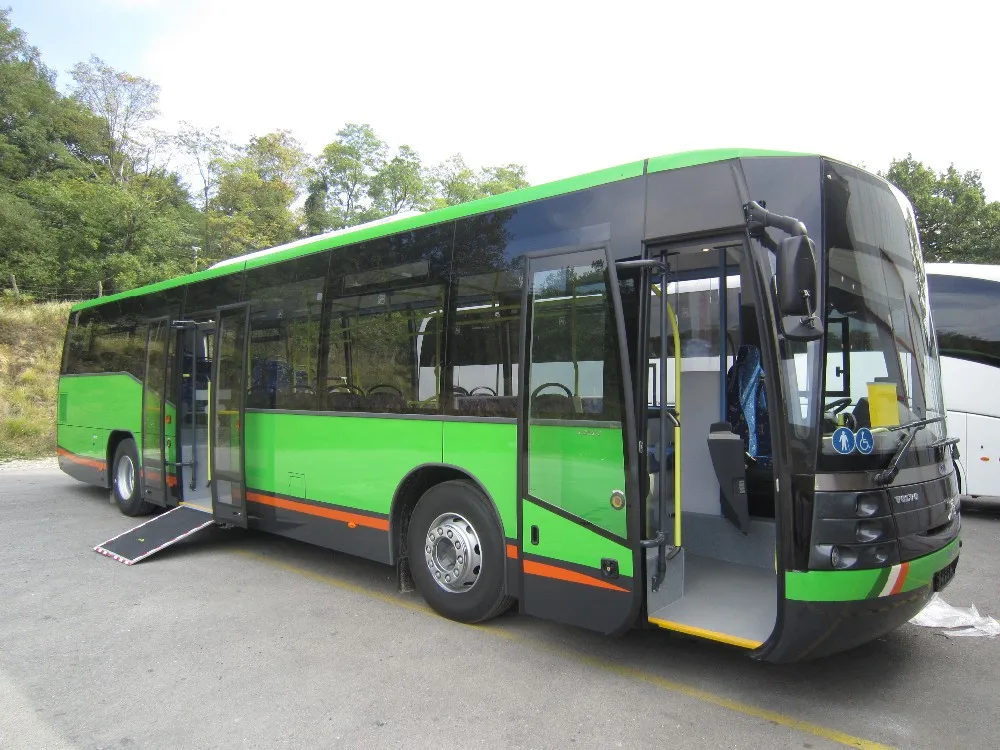

Electric wheelchair ramp can be applied on low-floor city bus and installed underside of passenger door step. When vehicle arrives at stop, the driver control the switch, and then platform can be extended and retracted smoothly. When the platform reach working position, the rear-end of ramp will raise automatically to eliminate height of threshold of passenger door so as to ensure rear-end of platform level up to vehicle floor, convenient for wheelchair to access vehicle. This electric wheelchair ramp has got two patents. This operating manual is made at the basic of EWR-L1. It is similar as other models except product parameter and mechanical installation specification. (Customer special requirement is excluded)
Rated Voltage of Motor: DC24V Max. Working Voltage of Motor: DC≤31V Max. Driving Current: 10A Time for Retraction or Extend: 1216S Max Loading Capacity: 350 Kg Max. Working Height: 300mm Ramp Raising Height of Rear-end (extend fully): 55mm Working Temperature: -20 +50 ℃
Safety Function: Adopt anti-skid aluminum plate on the surface of platform With sound and flashlight alarm during operation of wheelchair ramp With danger alarm on the outer-edge of ramp In the course of the ramp extends, if it touches any barrier, the ramp will retract automatically. For a moment, it will extend again. If this status repeats 3 times, then the ramp retracts to the rest position for safety. The ramp is interlocked with passenger door. Manual Function:When the driving motor is invalid, the ramp can be retracted manually.
Xinder-Tech was established in 2001 and ISO/TS 16949 certified. Main products: designing, manufacturing and selling wheelchair ramps, wheelchair lifts, electric steps, electric & manual folding step, wheelchair restraint systems, hand control system, wheelchair roof box, swivel seat, swivel lifting seat and other disabled products. About Us We are the leader of mobility in China and our products has taken up 90% of Chinese market.
If there is some problem happened, please call Xinder Quality Department
(0086-519-85139690) or send e-mail ,we will analyse the problem and give solution within 24 hours. If the problem is failed due to defective material or workmanship, we will provide part free for replacement. If you need to return some part for repair, please give us advanced notice as possible, and
allow reasonable amount of time to repair it. Shipping charges for returning parts to
Xinder-Tech shall be the responsibility of the customer. Xinder-Tech will pay shipping
charges when returning warrantable parts to the customer. Xinder-Tech will not accept
C.O.D. shipments of any returned goods.
The warranty does not cover: Malfunction or damage to parts caused by accident, misuse, lack of proper maintenance, improper adjustment, alteration, mechanical of vehicle, hazards, overloading, failure to follow operating instruction, or acts of nature (i.e. weather, lightning, and flood). Xinder's obligation under this warranty is exclusively limited to the repair or exchange of parts that fail within the applicable warranty period. Xinder-Tech assumes no responsibility for expenses or damages, including incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply.
