Xinder car seat lift , Wheelchair Swivel Seat System with wheelchair base can install on MPV middle door

FOB Reference Price:Get Latest Price
$2,500.00 - $3,500.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
General Seat
Material:
Seat is use PU, mechanism use alloy aluminum
Size:
650*480*170 mm (L*W*H)
Place of Origin:
Jiangsu, China
Brand Name:
Xinder
Model Number:
S-LIFT-W
Color:
black or beige
Turning angle:
90 °
Working time:
90s
Own Weight:
98kg
Loading capcity:
120KG
Operation:
Remote control
Voltage:
12V
Lifting Height:
395 mm
Packing size:
800*750*1000 mm
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
Shanghai, Ningbo
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 7 To be negotiated
S-LIFT -W

INTRODUCTION:

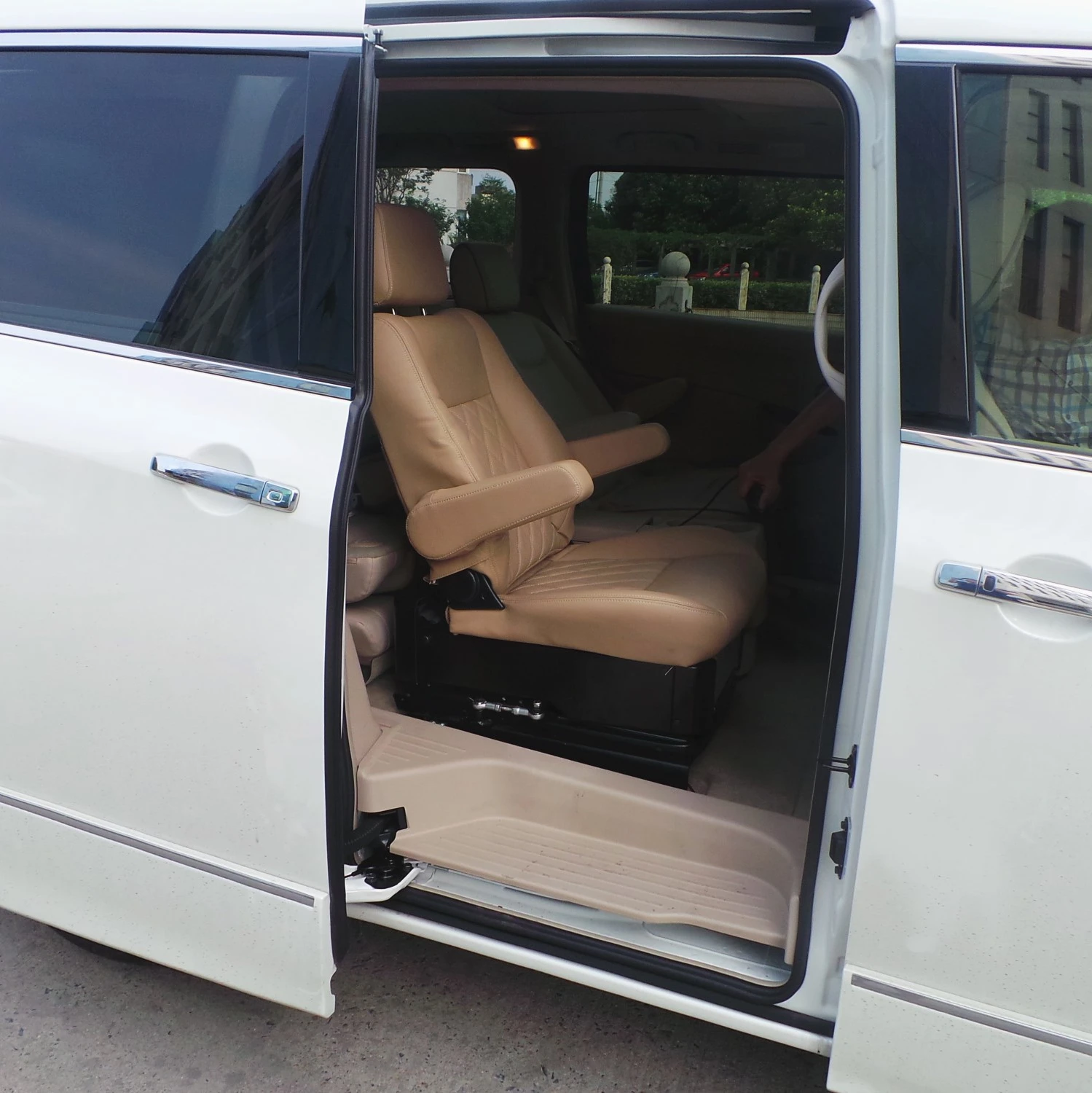

S-LIFT-W swivel seat & wheelchair is to bring easy entrance to people with reduced or limited mobility. It can be applied on vans, buses, taxi, ambulance, SUV and etc. You may operate it by remote control and stop it on any position as you desired.

Its load capacity reaches 120kg. This seat works stably, reliably and safely, so you can enjoy the convenience it may bring to you regardless of it safety.

The seat can be removed to wheelchair after it lowered, so that the passenger can go out on that chair.

Product working video:     http://youtu.be/bPdfsVHn3Io



Model
S-LIFT-W(small wheel)
S-LIFT-W(big wheel)
Dimension(L*W)
870*680mm
1020*680mm
wheelchair height
400-510mm
400-510mm
Own weight
115kg
124kg
Wheel model
12 inches
24 inches
Drive Mode
electric
Operation
Handheld remote control
Load Capacity
150kg
Rotate Angle
0~90°
Working Noise
<70dB

Operation way:

INSTALLATION NOTES:


Wholly assembled and easy installation

At the front seat or middle seat of MPV, SUV and so on

Put seat 50mm near door, and distance between seat front end and door sheet should be over 280mm


APPLICATION


MPV, van, minivan, SUV; camping cars

Handicapped car;

Ambulance;

Installed vehicle models:

Model
Installed Vehicle Models
S-LIFT-W-395
Nissan NV200, Honda Elsion, Toyota ALPHARD, Toyota Sienna, Benz Sprinter, Benz Viano, 2012 Honda Odyssey(7 seats), Toyota Previa, Shanghai Huizhong (12 seats)

our service:

1)- One year warranty for whole products

2)- Providing free quick-wear part.

3)- Low charge for continue maintenance when warranty is expired.

4)- Exclusive engineer support at any time.

5)- We can provide free training to end-users

6)- 24hours online services

Packing & Shipping

Packaging Details:

1) Internal packaging:be packed air bubble film inside first
2) External packaging:be packed in wooden cases or carton box
Delivery and shipping Details:
1)Usually be shipped by maritime transport or air transport
2)if it is landlocked countries, generally land and sea transport.
3)15-30 days after confirmation of the purchase order

Usually we use wooden case pack for wheelchair lift,wheelchair ramp and swivel seat

                           Carbox for Electric step,wheelchair restraint system

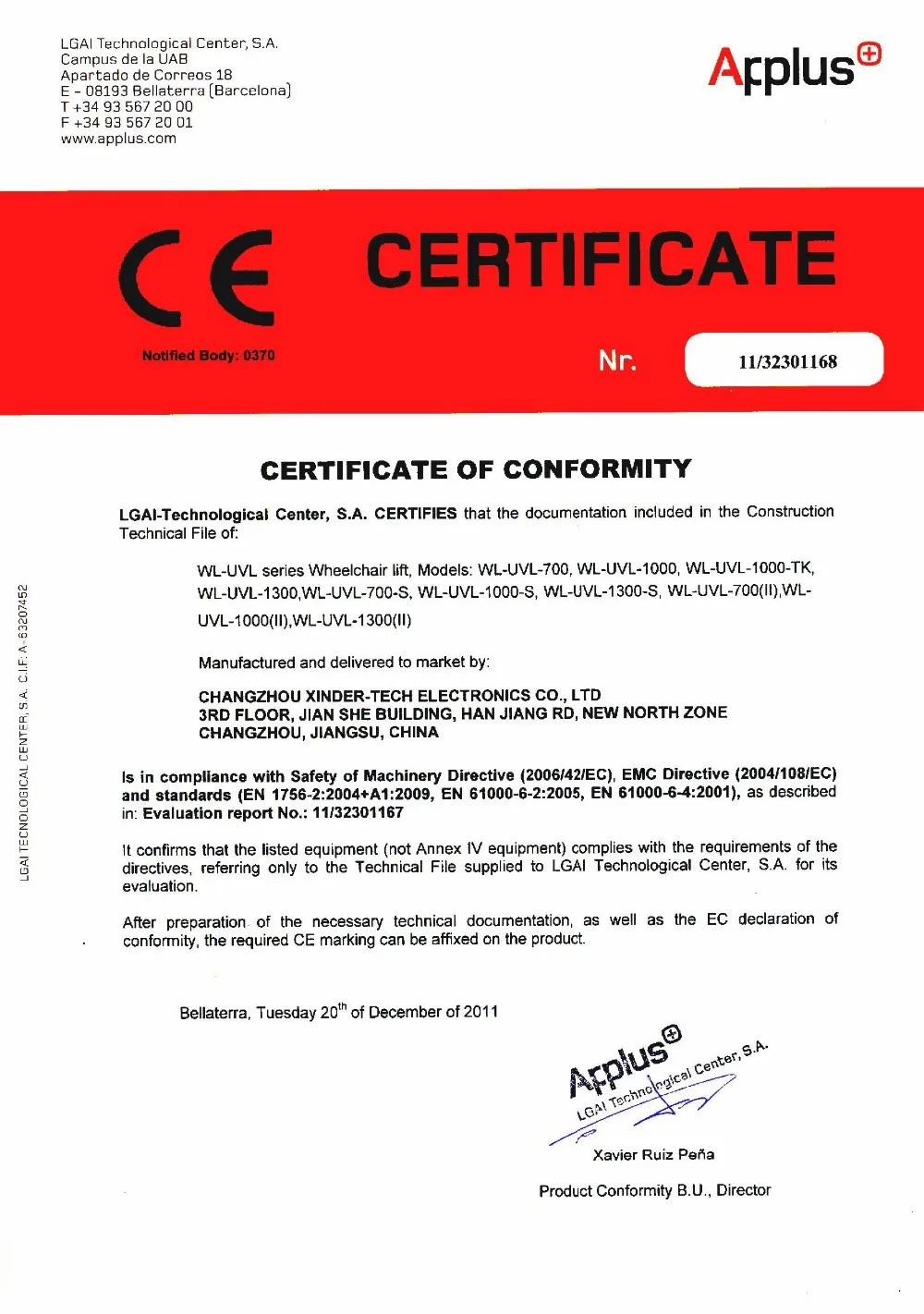

Certifications
